HVAC UVC
The Covid 19 pandemic has changed our lives forever. It is clear that some things will never be the same again and that the fight against viruses will become our daily routine. The increasing number of pandemics on the planet Earth and the new biological risks to human health and lives, as well as the announcement of scientists that this virus will be replaced by some other in the future, and the viruses are best transmitted through the air, speaks in favor of the fact that it is necessary that each air conditioning and ventilation system has an active defense against viruses and bacteria.
For that reason, the innovative team of Eko-dim & AT & TC Propokan Pro Group has patented a device to fight the virus Covid 19. This is how the 100% domestic product, made in Serbia, HVAC UVC duct was created, intended for elimination of viruses and bacteria in ventilation and air conditioning systems.
Our HVAC UVC DUCT is in accordance with the ISO 15714: 2019 standard (Methods for estimating the required dose of UVC radiation for the elimination of microorganisms in the air which pass through UVGI devices that radiate in the duct). In addition, this device is in accordance with the Sanitary and Epidemiological Standards of the Russian Federation (Use of UV bactericidal radiation for air disinfection - P 3.5.1904-04).

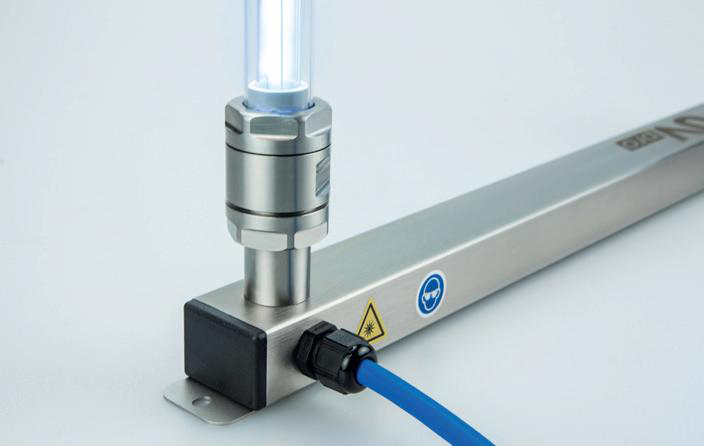

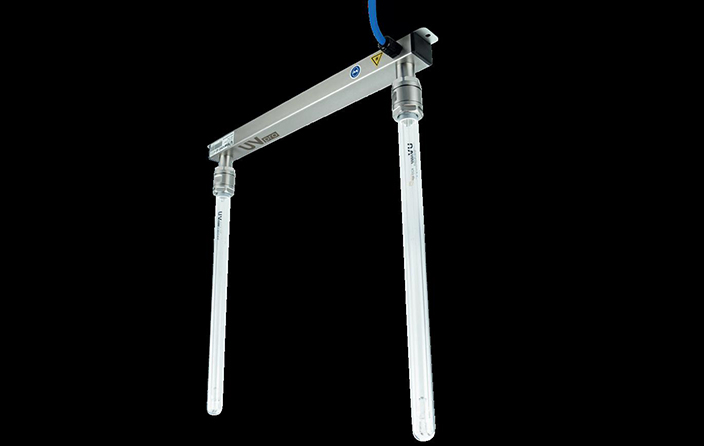

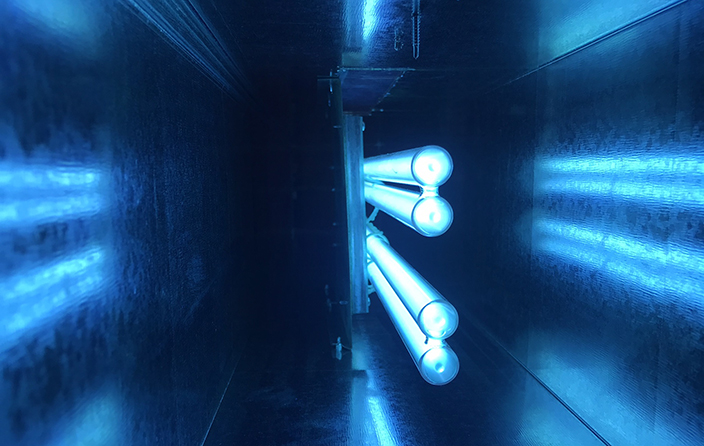

HVAC UVC system - module for ducts and air chambers allows easy installation of UVC technology in ducts for ventilation and air conditioning, as well as in air chambers. The mounting frame is attached to the inner surfaces of the duct or air conditioning chamber.
Air flow and other important parameters affect the efficiency of the system. The number of required modules and the type of modules required for efficient air sterilization are determined using a software-based calculation. Different types of UVC radiation sources enable a high degree of flexibility and adjustment in all conditions of use.
HVAC UVC modules are designed for installation in new duct systems for air conditioning and ventilation or air chambers, as well as for subsequent installation in the existing duct systems and air chambers.
- Easy installation, maintenance and system operation control
- Possibility of remote control of system operation via WiFi cameras
- Proven technology for long-term use
HVAC UVC DUCT for air sterilization
Type: | HVAC UVC module |
Operating temperature: | -10 °C - +50 °C |
Power consumption: | 60W - 1.440W |
UVC power [235.7 nm]: | 19W - 456W |
Mains voltage: | 220V (50Hz) |
Electric current strength: | 0,8A - 19,2A |
Length: | 600mm |
Weight: | 0,5kg - 12kg |
Recommended operating time: | 8.000h |
Warranty: | 2 years |
If you want to upgrade the UVC module in your ventilation and air conditioning system, please call us. Our expert team will inspect your system on site and suggest a solution with the optimal number of air sterilization modules.
