Smoke filters
During the combustion of fuel in the firebox, smoke is produced which is released into the environment by the smoke extraction system. Emissions of smoke, soot and other contaminated particles, such as odors, have a negative impact on both humans and the environment. Unlike ventilation systems, smoke filtration has been a long time without the right solution.
EKO-DIM, as a modern chimney sweep organization, has paid full attention to solve this problem. Commitment to the maximum satisfaction of the needs of our clients has brought us the opportunity to be the first in this region to offer customers solutions for filtering smoke from smaller fireboxes.
Water filter for stoves and small fireboxes

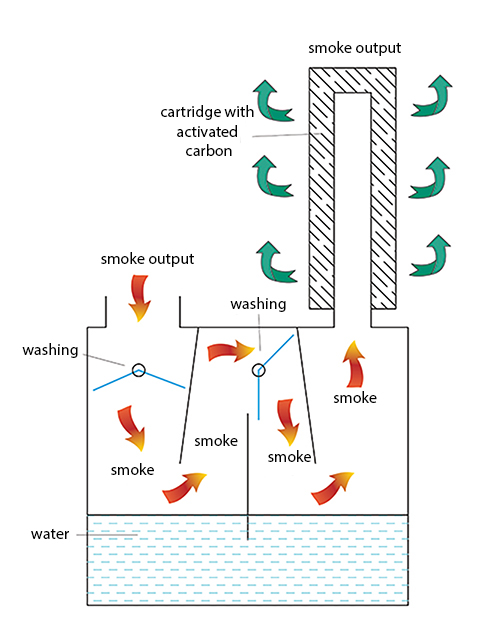

The device is used for pellet stoves and smaller fireboxes. It is designed to filter smoke particles, soot, odors and other unburned particles with very low energy consumption. The inside of the filter is divided into sectors through which the flow of smoke is directed over the water surface.

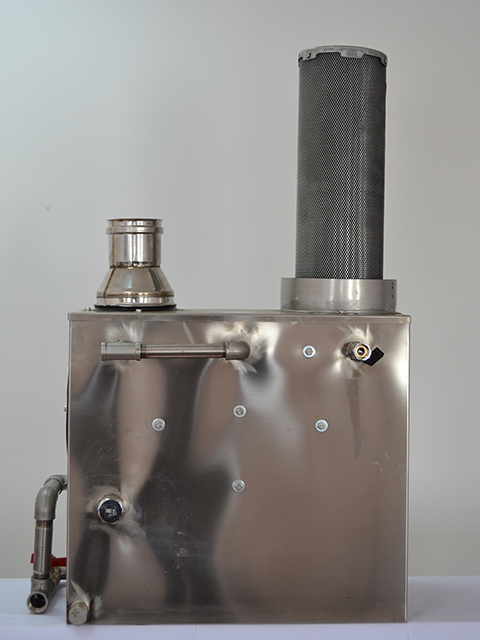

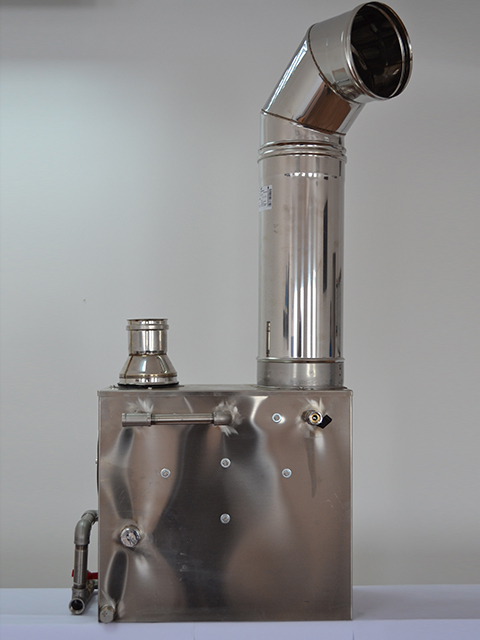

CLEANER MINI 120
Water filter MINI 120 provides two phases of filtration:
- Water filtration, smoke flow on the water surface that washes and absorbs soot particles
- Activated carbon filtration, smoke flow through the activated carbon cartridge which removes odors.
For additional smoke filtration, two nozzles are installed, connected to the water supply network, which disperse water. When the firebox is lit or extinguished, i.e. when the smoke production is more intensive, a higher degree of filtration is required, which is achieved with these nozzles. Under normal circumstances, the device gives good results even without nozzles.
The filter is so efficient that the smoke comes out without soot particles and is practically odorless.
It is important to note that the device does not have a fan but relies exclusively on the ventilation of the firebox or chimney draft, so it is very important to correctly determine the installation position by professionally trained personnel. The device is intended for outdoor installation.

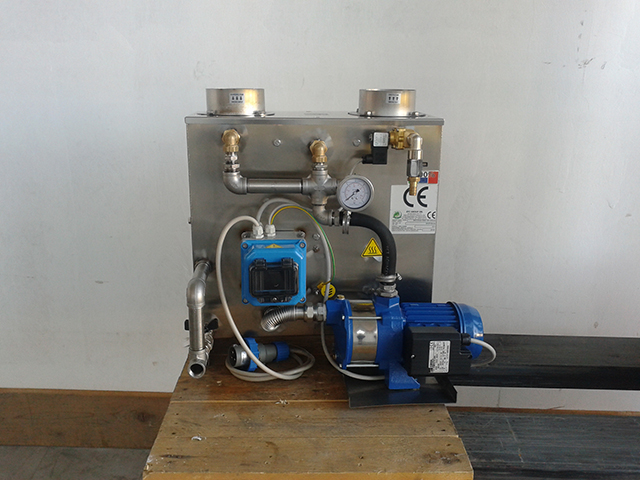

CLEANER MINI POWER 120
Water filter MINI POWER 120, like the MINI 120 filter, is designed to remove soot particles and other contaminated particles from the flue gases. It is used in cases when it is necessary to filter waste non-toxic gases before releasing them into the environment.
It has found application in the processing of flue gases from smaller stoves, smokehouses and fireboxes that use wood or other fuels that produce thick smoke and soot particles.
The presented model achieves double rinsing, on the water surface inside the filter and rinsing through the water atmosphere created by the nozzles. Contaminated water used for filtration is discharged into the sewer by a drainage system.
Steam-saturated gas is released from the filter, free of carbonate particles and suspended impurities. Unpleasant odors are reduced by 60-70%.
CLEANER MINI 120 | |
Technical characteristics: | |
Dimension (LxWxH) | 520x230x450 mm |
Activated carbon cartridge | 420 mm |
Weight (empty) | 5 kg |
Weight (full) | 15 kg |
Material | nerđajući čelik 304 |
Output temperature | ~50 C° |
CLEANER MINIPOWER 120 | |
Technical characteristics: | |
Dimension (LxWxH) | 520x400x450 mm |
Weight (empty) | 10 kg |
Weight (full) | 25 kg |
Material | nerđajući čelik 304 |
Output temperature | ~50 C° |
