UV-C

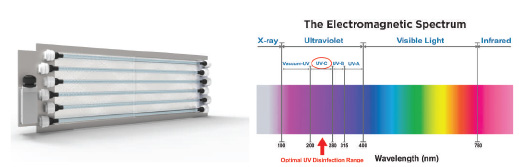

UV-C LAMPS FOR FUMES AND SMOKE FROM COMMERCIAL KITCHENS
In restaurants or industrial kitchens, grease, contaminants and unpleasant odors are formed during the cooking phase. Applied within kitchen hoods and aspiration systems, UVSMELL-SQ significantly contributes to minimizing these problems.
Fats are carbon and hydrogen compounds, with a structure made of complex chains. If fats are exposed to intense UV-C radiation, they absorb part of this powerful energy, and the molecules, placed in a state of higher energy, become more reactive. For that reason, they recombine with the oxygen in the air. This process causes a specific and instantaneous chemical reaction “cold combustion”. The result of this reaction is short chains of organic odor, such as carbon dioxide (CO2), water, etc., which are normally present in the air.
For these reasons, during normal cooking, the fumes filtered by UVSMELL-SQ are significantly reduced in grease, which reduces the risk of fire, but also limits the growth of molds that are usually fed on grease. UV-SMELL-SQ reduces the need for cleaning and maintenance of aspiration systems, prolongs the life of the filter, but also offers the possibility of safe operation which is even more important. UV-SMELL-SQ uses UV-C lamps and / or UV-C +03 (Ozone) lamps, and it is the first device on the market that can handle ozone-free bulbs, alternatively or even combined together, according to customer needs.
In such applications, UV power is often sufficient to achieve excellent results, but ozone, which is retained in the air for a few seconds before being converted to simple oxygen, maximizes UV-C performance. In combination with the ultra-high UVC power emitted by UV-C bulbs, further oxidation of pollutants is performed and it contributes to the success of deodorization. The specific materials (IP 55), used for waterproofing UV-SMELL-SQ, are resistant to high temperatures (45/50°C) and lubricants.
Model | UV-C 350 | UV-C 500 | UV-C 700 |
Air flow m³/h | 2.500-3.500 | 5.000 | 7.500 |
UV-SMELL (+Oz) Bulb Amount | 2-4 | 4-6 | 6-8 |
Dimensions L x W x H | 760 x 575 x 575 | 1035 x 575 x 575 | 1450 x 575 x 575 |
UV-SMELL-Bulb Type | High efficiency pure quartz | High efficiency pure quartz | High efficiency pure quartz |
UV-SMELL - (+Oz) Bulb Life Span | 12.000-18.000 Hours | 12.000-18.000 Hours | 12.000-18.000 Hours |
UV-C Buld Light Travelling Point | 253,7 nm + Oz 183 Nm | 253,7 nm + Oz 183 Nm | 253,7 nm + Oz 183 Nm |
UV-SMELL-SQ are high performance devices, representing the optimal solution for removing grease and reducing odors from ventilation fumes in your professional kitchen. UV-SMELL-SQ significantly increases the level of fire protection in facilities. The devices can be implemented to the already existing filter sections on the ventilation system.
